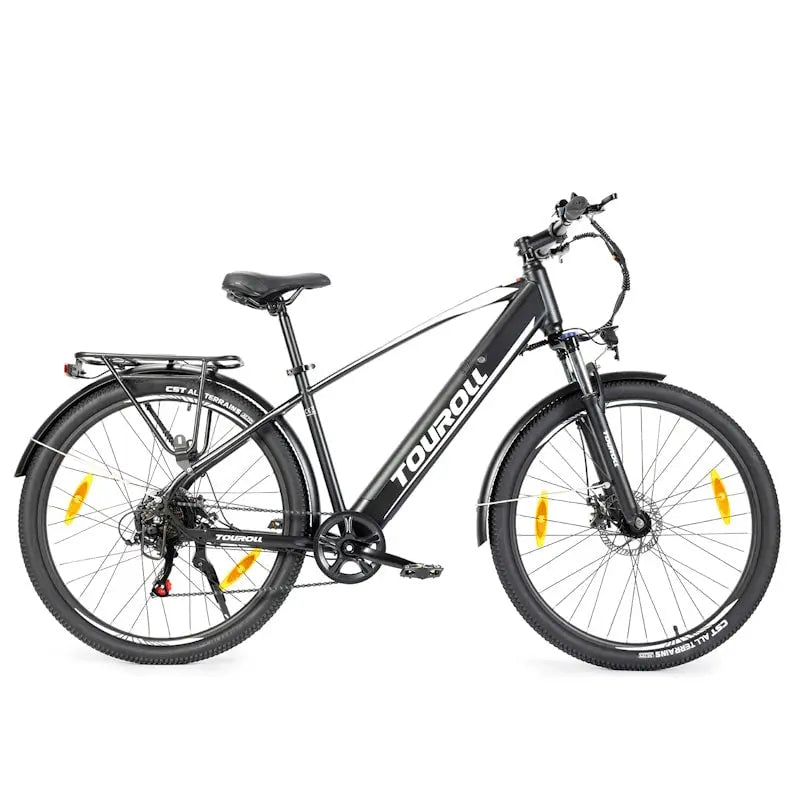

Touroll J1 Trekking E-Bike 250W 15.5mph Top Speed EAPC

About the Touroll J1 E-Bike

The Touroll J1 is a versatile and reliable e-bike designed for both urban commuting and leisure rides. Equipped with a 250W hub motor delivering 45Nm of torque, it offers smooth acceleration and can handle inclines up to 15°. The 36V 15.6Ah removable lithium-ion battery provides a range of up to 100 km on a single charge, making it ideal for daily commutes and weekend adventures.

Featuring 27.5 x 2.1" CST pneumatic tyres and a 7-speed Shimano gear system, the J1 ensures a comfortable and adaptable ride across various terrains. The mechanical suspension with lockout absorbs shocks from uneven surfaces, while mechanical disc brakes offer reliable stopping power.

The intelligent 1.8" LCD display provides real-time data and includes a USB port for charging devices on the go. Additional features like StVZO-certified LED lights, a sturdy luggage rack, and mudguards enhance safety and practicality for everyday use.

Specifications

• Net Weight: 26.4kg
• Unfolded Size: 1820 x 680 x 1110mm
• Size of Frame: 27.5" x 17.5"
• Length of Handlebar: 680mm (26.8")
• Height of Saddle (from the ground): 32.3"-38.6"
• Recommended Rider Height: 160-200cm (around 5' 3"-6' 7")
• Max Load of Bike: 120kg
• Cut-off Speed: 25km/h (15.5 mph)
• Max Range: 100km (Assist Mode)
• Pedal Assist Levels: 12/15/18/21/25 km/h
• Walk Mode: 6 km/h
• Waterproof Level: IPX4
• Material: STL
• Braking System: Mechanical Disc Brake & E-Brake
• Suspension: Mechanical Shock Absorber with a Lockout

Motor

• Type: Hub Motor
• Rated Voltage: 36V
• Max Output Torque: 45Nm

Derailleur

• Brand: Shimano
• Number of Gears: 7 (Rear)

Battery

• Capacity: 15.6Ah
• Voltage: 36V
• Charging Time: 6-8h
• Power Capacity: 561.6Wh
• Protection System: Yes

Charger

• Input: 100-240V, 2.0A
• Output: 42V, 2.0A

Tyres

• Brand: Kenda
• Size: 27.5 x 2.1"
• Type: Pneumatic Rubber Tyres
• Tyre Pressure: 40-70 PSI
• Best Tyre Pressure: 45-65 PSI

Display

• Size: 1.8"
• Type: LCD
• Information: Speed, Battery Level, Trip Distance/Odometer, Assist Level, Walk Mode, Light Mark, Brake Mark
• Functions: Power on/off, turning light on/off, shifting assist levels, activating walk mode, removing trip data, setting screen timeout etc.

Sizing Guide

• A. Total Length: 71.7"
• B. Handlebar Height: 43.7"
• C. Wheelbase: 43.7"
• D. Min. Seat Height: 32.3"
• E. Max. Seat Height: 38.6"
• F. Standover Height: 29.5"
• G. Effective Top Tube: 24.4"
• H. Wheel Size: 27.5"
• I. Down Tube: 29.5"
• J. Seat Tube: 17.5"
• K. Angle b/w DT & ST: 54.3°
• L. Head Tube Angle: 72°
• M. Reach: 15.7"
• N. Stack: 28.7"
• O. Handlebar Length: 26.8"

Package Contents

• Touroll J1 E-Bike
• Charger
• Pedals
• Keys
• Taillight
• Headlight
• LCD Display
• Tool Kit
• Mudguards
• Spoke Reflectors
• User Manual
